Description
- NETA Gun Metal Ferrule Cock
- J.C.S.W.R Type
- Screwed Male Ends
- BSP Taper Inlet and BSP Parallel Outlet Threads
Test Pressure
Hyd. Tested to 21 Kgf/cm²
Certification
Our Works Test Certificate
Application
Water
HSN
84818020
Hyd. Tested to 21 Kgf/cm²
Our Works Test Certificate
Water
84818020

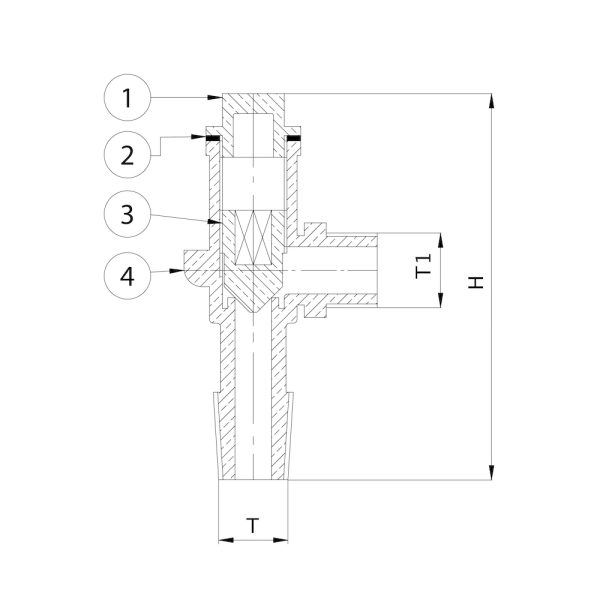

| PNo. | Part | Nos. | Material | Standard |
|---|---|---|---|---|
| 1 | Cover | 1 | G.M. | IS:318 Gr.LTB2 |
| 2 | Gasket | 1 | C.A.F. | IS:2712 |
| 3 | Disc | 1 | G.M. | IS:318 Gr.LTB2 |
| 4 | Body | 1 | G.M. | IS:318 Gr.LTB2 |
| Nominal Size (Inches) | Nominal Size (mm) | H App. | T BSPT Threads | T1 BSP Parallel Threads | MRP / Piece |
|---|---|---|---|---|---|
| 1/2 | 15 | 107 | 1/2 | 1/2 | – |
| 3/4 | 20 | 125 | 3/4 | 3/4 | – |
| 1 | 25 | 142 | 1 | 1 | – |
| Nominal Size (Inches) | Nominal Size (mm) | H App. | T BSPT Threads | T1 BSP Parallel Threads | MRP / Piece |
|---|---|---|---|---|---|
| 1/2 | 15 | 107 | 1/2 | 1/2 | – |
| 3/4 | 20 | 125 | 3/4 | 3/4 | – |
| 1 | 25 | 142 | 1 | 1 | – |
