Description

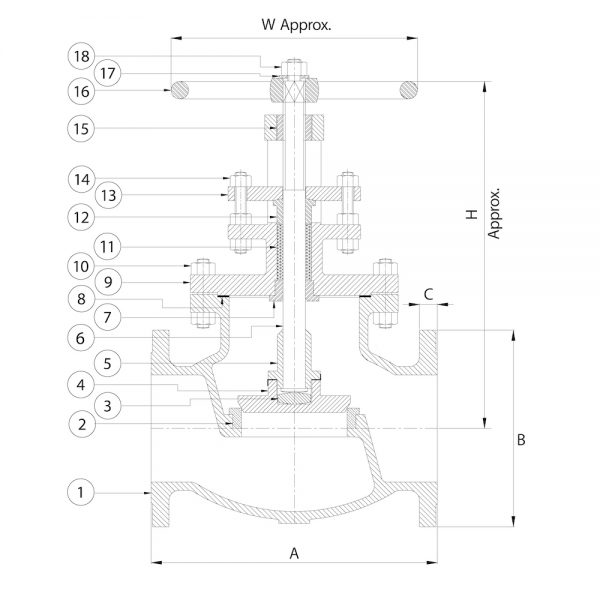

- Neta Cast Steel (ASTMA 216 Gr. WCB) Globe Valve.
- Product Standard: BS 1873 Class-300.
- Bolted Bonnet.
- Outside Screw and Yoke Type.
- 13 % Cr. Stainless Steel (ASTM A182 Gr.F6a/ AISI-410) Trim.
- Flanged Ends to BS: 1560 / ANSI-B 16.5, Class-300 Raised Face Drilled/ Undrilled.
Test Pressure
Body : 76 Bar Gauge Hyd.
Seat : 56 Bar Gauge Hyd.
Backseat : 56 Bar Gauge Hyd.
Design Features
- Streamlined full flow area is provided in the body to minimise pressure drop.
- Renewable 13 % Cr. S.S.(AISI-410) body seat ring and disc have at least 50 HB difference in hardness.
- Bolted self aligning two piece gland.
- Back seating arrangement permits the replacement of gland packing in fully open
position while the Valve is under inline pressure. - Ample depth of stuffing box.
- Sturdy spoked handwheel is provided for operation of the Valve.
Certification
IBR Test Certificate in Form III-C duly signed by the Director of Boilers, Punjab is provided.
Application
Steam, Water, Oil
HSN
84818010
