Test Pressure : 500 PSIG Hyd.
Our Works Test Certificate
Steam, Water
84818020

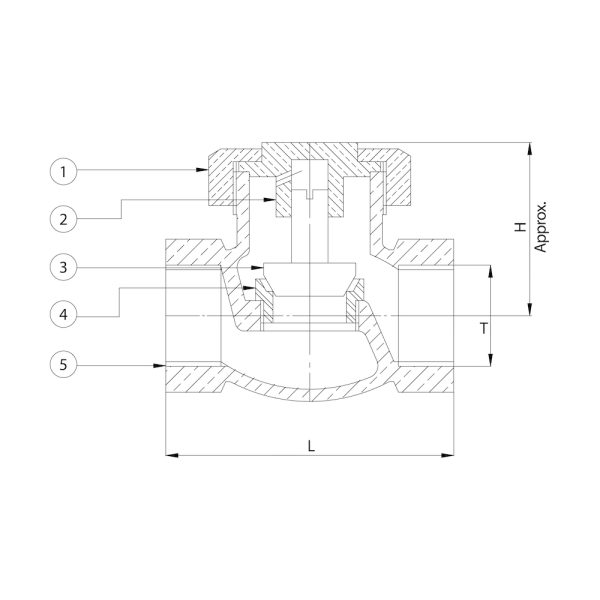

| PNo. | Part | Nos. | Material | Standard |
|---|---|---|---|---|
| 1 | Union Nut | 1 | G.M. | IS:318 Gr.LTB2 |
| 2 | Cover | 1 | G.M. | IS:318 Gr.LTB2 |
| 3 | Check Valve Disc | 1 | S.S. 13% Cr. | ASTM A182 Gr.F6a / AISI – 410 |
| 4 | Body Seat Ring | 1 | S.S. 13% Cr. | ASTM A182 Gr.F6a / AISI – 410 |
| 5 | Body | 1 | G.M. | IS:318 Gr.LTB2 |
| Nominal Size (Inches) | Nominal Size (mm) | L ±1.5 | H App. | T – BSP Parallel Threads | MRP / Piece |
|---|---|---|---|---|---|
| 1/2 | 15 | 70 | 44 | 1/2 | – |
| 3/4 | 20 | 85 | 53 | 3/4 | – |
| 1 | 25 | 95 | 60 | 1 | – |
| 1.1/4 | 32 | 114 | 65 | 1.1/4 | – |
| 1.1/2 | 40 | 118 | 82 | 1.1/2 | – |
| 2 | 50 | 142 | 88 | 2 | – |
| Nominal Size (Inches) | Nominal Size (mm) | L ±1.5 | H App. | T – BSP Parallel Threads | MRP / Piece |
|---|---|---|---|---|---|
| 1/2 | 15 | 70 | 44 | 1/2 | – |
| 3/4 | 20 | 85 | 53 | 3/4 | – |
| 1 | 25 | 95 | 60 | 1 | – |
| 1.1/4 | 32 | 114 | 65 | 1.1/4 | – |
| 1.1/2 | 40 | 118 | 82 | 1.1/2 | – |
| 2 | 50 | 142 | 88 | 2 | – |
